Román Cortés

Pure CSS Coke Can

25 de Enero del 2010


(versión en castellano abajo)

After doing the CSS Paper Bird effect, I found out that by a combination of the CSS1 properties background-attachment and background-position, 2D displacement maps could be created and, by scrolling, the displacement map would be applied to different parts of the texture (a background image).

With displacement maps lots of cool effects could be done, but thinking that the complexity of the displacement map would directly affect the CSS and markup size, choosing a good example took me some time. I thought in sea waves reflections, underwater distortions, magnifying glass, a rotating Earth… but the final thing I did was just right in my desktop: a Coke can - my favourite drink.

Due the cilindrical shape of a can, the displacement map is very simple with the parallel projection I did, so the code is very little - below 5kb - and easy to understand I hope.

Even if this effect is mainly CSS1 and some bits of CSS2 - for the scrolling div, overflow: auto property -, it is not going to work in IE6, because it doesn’t support background-attachment: fixed. I’ve tested it and it works in IE8, Firefox 3.5, Chrome 3, Safari 4 and Opera 10. Also, the code validates.

Castellano

Tras crear mi anterior efecto (post anterior a este), describí que con una combinación de las propiedades CSS1 background-attachment y background-position, se pueden crear mapas de desplazamiento y, mediante barras de scroll, estos mapas pueden moverse y aplicarse a diferentes partes de una textura (una imagen de fondo).

Con los mapas de desplazamientos se pueden hacer una gran cantidad de efectos interesantes, pero la complejidad del mapa afecta directamente al tamaño del código HTML y CSS. Encontrar un ejemplo apropiado cuya tamaño de código no fuese muy grande pero que produjese un efecto interesante me llevó algo de tiempo. Tras pensar en reflejos de olas, distorsiones submarinas, efecto lupa, la Tierra rotando, finalmente encontré el mejor ejemplo justo encima de mi mesa: una lata de Cola-Cola (mi bebida favorita).

Debido a la forma cilíndrica de la lata, el mapa de desplazamiento es sencillo con la proyección paralela que hice en el ejemplo, y por tanto el código es muy pequeño (menos de 5kb) y fácil de entender (espero).

Pese a que el ejemplo funciona principalmente con CSS1 (y overflow: auto de CSS2), no funcionará en IE6; no soporta la propiedad background-attachment: fixed. Lo he probado en los navegadores actuales y funciona correctamente, y el código valida.

CSS Paper Bird

21 de Enero del 2010

(versión en castellano abajo)

In this experiment I took a serie of paper bird (crane) photos with different illumination positions I did some time ago, and I’ve created a pure CSS effect - without Javacript - to show them one by one depending on the scrollbars positions.

Please, drag the thumbs/sliders along the tracks to see the effect.

I’ve tried the effect and it works in IE8, Safari 4, Firefox 3.5, Chrome 3, Opera 10 and the code validates. It doesn’t work in IE6.

Castellano

En este experimento he usado una serie de fotos a una pajarita de papel con diferentes posiciones de iluminación que hice hace tiempo, y he creado este efecto CSS puro (sin Javascript) que muestra las imágenes de una en una dependiendo de la posición de las barras de desplazamiento.

Arrastra los deslizadores de las barras de desplazamiento para ver el efecto.

Lo he probado y funciona en los navegadores actuales y el código valida. No funciona en IE6.

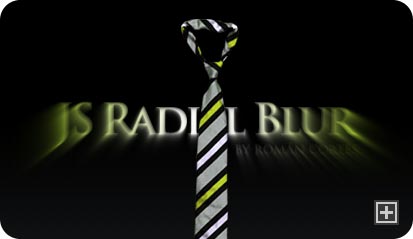

Javascript Radial Blur

16 de Enero del 2010

Click here to see the effect

(versión en castellano abajo)

This effect is a radial motion blur coded in Javascript. Since it uses the canvas element, it requires the latest browser versions and does not work in any current version of Internet Explorer.

The radial motion blur algorithm in this effect is a fast one that uses feedback for blur propagation. The most complex thing I did here was the speed optimization. Even if the effect is somewhat simple to code, it is not an easy task to make it fast enough to be realtime in Javascript for the current browsers and computers. It is working fast in the current versions of Safari and Chrome, not that fast, but enough in Firefox, and slow in Opera.

There are some interesting Javascript speed optimization methods on this. Please take a look of the source code if you are interested. If you want further explaination, please leave a comment and I will try to explain it in a new post.

Castellano

Este efecto es un difuminado radial de movimiento (me suena fatal esta traducción que he hecho, pero la verdad es que no estoy muy seguro de cómo podría llamarse en castellano) programado en Javascript. Usa el elemento canvas y por tanto requiere las últimas versiones de los navegadores. No funciona en Internet Explorer.

El algoritmo de difuminado que he usado para este efecto es uno rápido que usa realimentación para la propagación del difuminado. Lo más complejo fue la optimización de velocidad. Pese a que el efecto es relativamente simple, no es fácil conseguir que sea en tiempo real en Javascript en los ordenadores y browsers actuales. Está funcionando rápido en Safari y Chrome, suficiente en Firefox y lento en Opera.

Hay varias optimizaciones de velocidad para Javascript en esto. Si estáis interesados, por favor, mirad el código fuente. Si necesitáis que lo explique, dejad un comentario e intentaré explicarlo en un próximo post.
